SUNGOLDPOWER 400 Watt 12V Monocrystalline Solar Panel Module：4pcs 100W Monocrystalline Solar Panel Solar Cell Grade A +20A LCD PWM Charge Controller+MC4 Extension Cables+4 Sets of Z-Bracket
Brief information
Presence: In stock
Details
Specification:

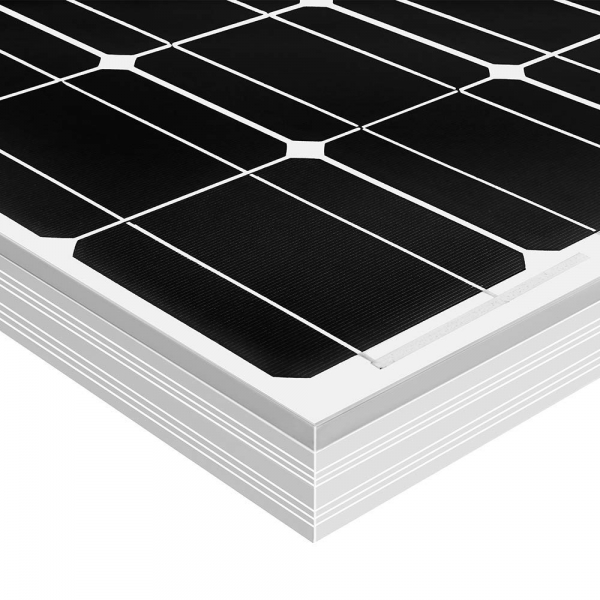

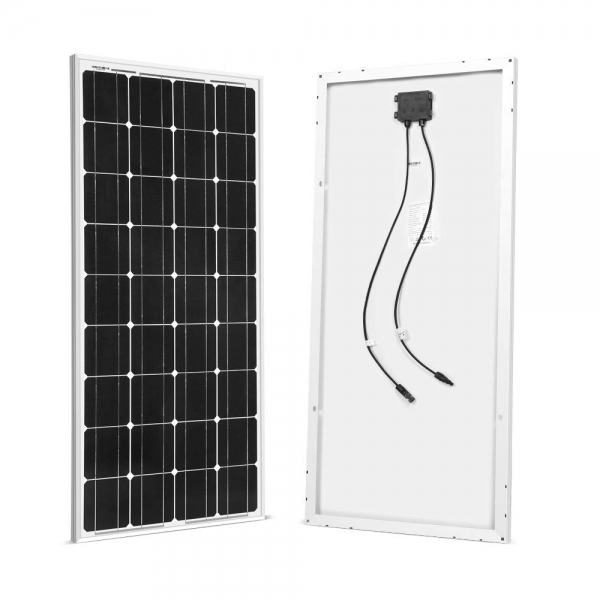

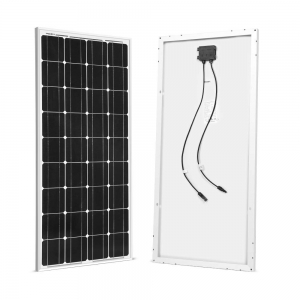

4pcs 100W monocrystalline solar panel（Grade A solar cell )
*Model Type:SG-100WM
*Rate Maximum Power:100W
*Voltage: DC 12V
*Output Tolerance:±3%
*Voltage at Pmp:18.5V
*Current at Pmp:5.41A
*Open-Circuit Voltage:22.4v
*Short-Circuit Current:5.9A / *Maximum System Voltage:1000V
*Product Dimension: 47.2 * 21.8 * 1.4inch / *Product Weight:16LB * 4PCS

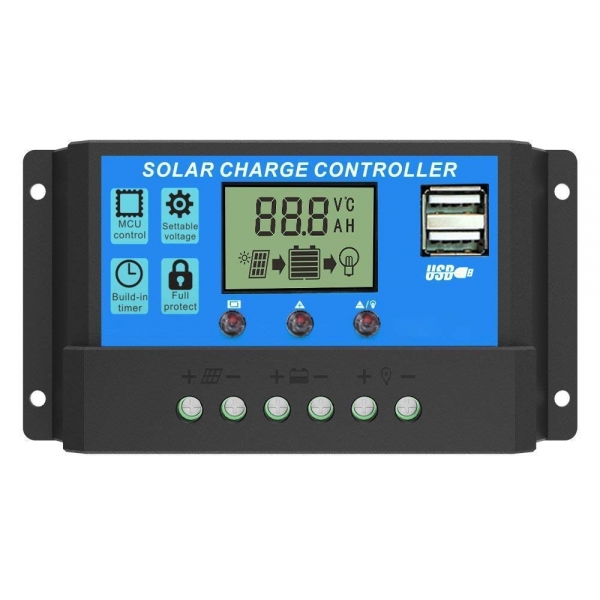

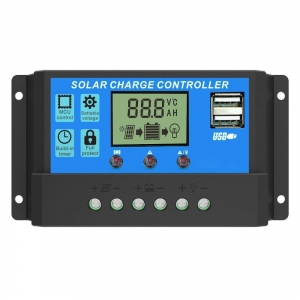

2pcs 20A PWM LCD display charge controller:
*USB Output Voltage: 5V/3A
*Battery Voltage: 12V/24V(Auto-Sensing)
*Rated Discharge Current: 20A
*Over charge Protection: 14.4V/28.8V
*Over charge Floating charge: 13.7V/27.4V / *Charge recover voltage: 12.6V/25.2V
*Over discharge Protection: 10.7V/21.4V / *Over discharge Recover: 12.6V/25.2
*Comes with a display that can clearly indicate the status and data
*Can be conveniently switched modes and parameter configuration
*Auto. Adjustable power rate with dual USB ports;
*Mutiple Electric Protection: Over-current and short-circuit protection, inverse connection protection, low voltage and overcharge protection

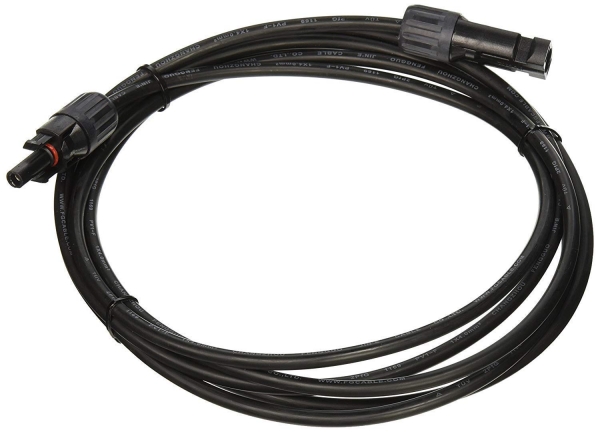

2pcs MC4 Extension Cables：
*Waterproof and dustproof
*Hard plastic connectors at each end,female and male connectors.
*Designed for outdoor use on solar panel systems: TUV Certified and ROHS Compliant

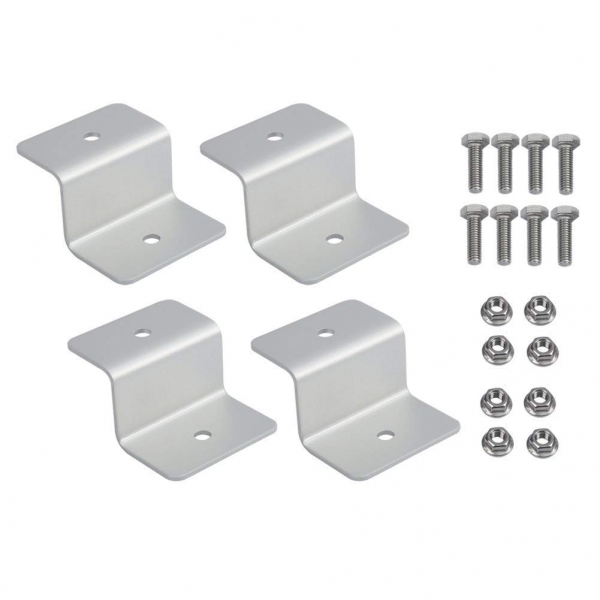

4 sets of Z bracket:
*Aluminum corrosion-free construction;durable and lightweight.
*High quality Z style solar panel bracket Z bracket mount supporting bracket with nuts.
*Z bracket can secure the system to the installation surface which makes the installation work easy.

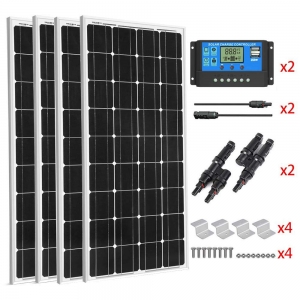

Package Include:
4 x100W Mono Solar Panel
2 x 20A PWM Charge Controller with LCD Display
2 pair of MC4 Extension Cables
4 sets of Z-bracket
Package Dimension: 50 * 24.8 * 6.2inch
Package Weight:84LB
