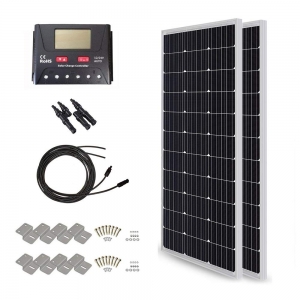

HQST 200 Watt 12 Volt Monocrystalline Solar Panel Kit with 30A PWM LCD Display Charge Controller

Brief information

Presence: In stock

260 USDT

Details

HQST 100 WATT 12 VOLT MONOCRYSTALLINE SOLAR PANEL

panel

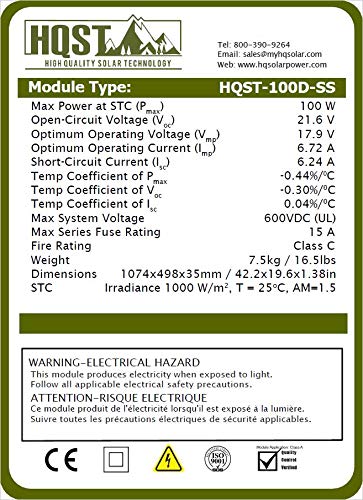

100W Monocrystalline Solar Panel

Maximum Power at STC (Pmax): 100 W

Optimum Operating Voltage (Vmp): 17.9V

Optimum Operating Current (Imp): 6.72A

Open Circuit Voltage: (Voc) 21.6V

Short Circuit Current: (Isc) 6.24 A

Maximum System Voltage: 600 VDC (UL)

Junction box: waterproof, IP65 Rated

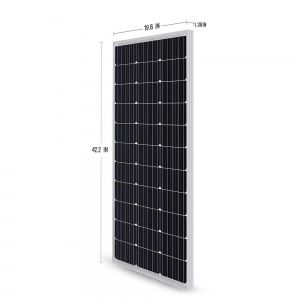

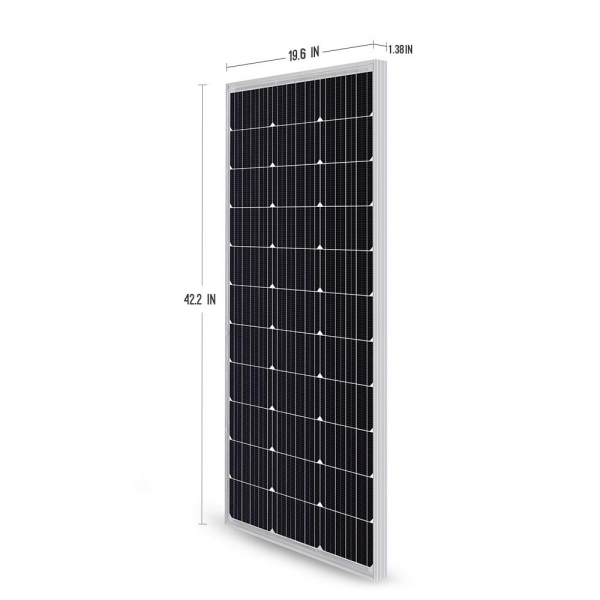

Dimensions: 42.2 x 19.6x 1.38 in.

Weight: 16.5 lbs

HQST 30Amp PWM Solar Charge Controller with LCD Display & HQST MC4 Solar Adaptor Cable

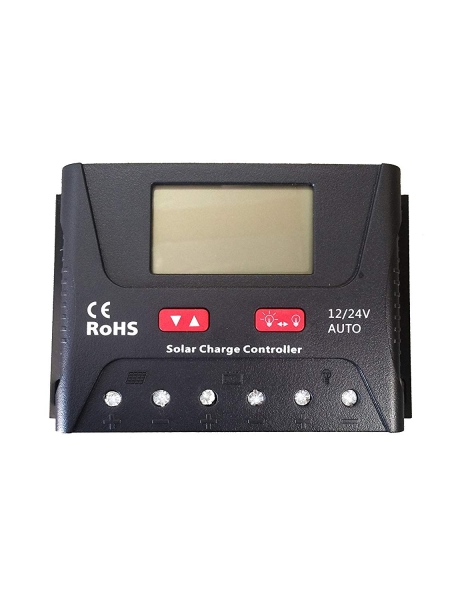

30A PWM Charge Controller (Positive Grounded)
Nominal System Voltage: 12V/24V Auto recognition
Max. PV Input Power: 120W (12V), 240W (24V)
Max. Solar Input Voltage: 42V
Dimensions:6.5x 4.1x1.9 In.

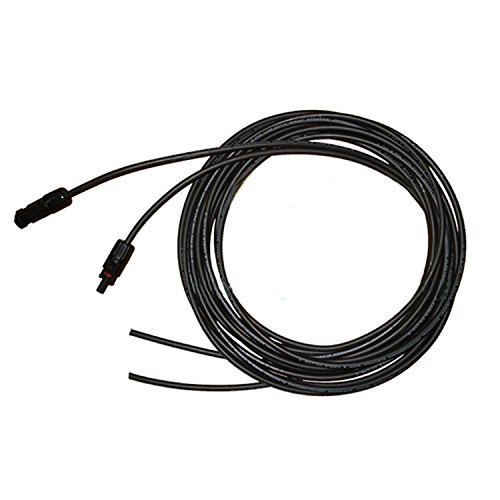

20ft 12AWG MC4 Adaptor Cable (A pair)
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

HQST Solar MC4 Branch Connectors MMF+FFM Pair & HQST Solar Panel Mounting Z Bracket

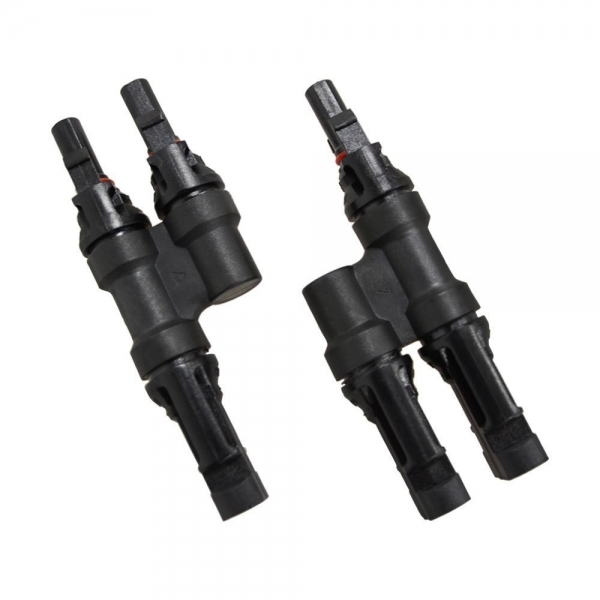

MC4 Branch Connectors MMF+FFM Pair
Withstanding voltage: 1000V DC(TUV)
600V(UL)Contact Resistance: 1m
Temperature: -40°F to +194°F

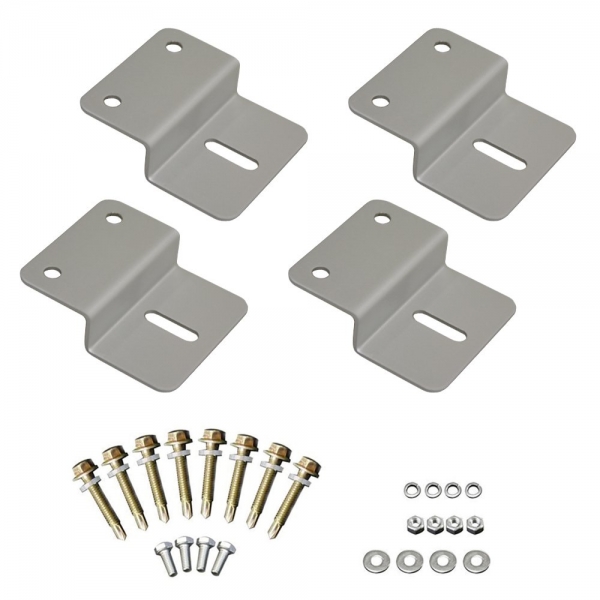

Mounting Z Brackets (Four sets)
4 Z Shape Solar Panel Brackets
8 Long Cap Bolts and 4 Short Bolts
4 Spring Washers and 4 Washers
4 Nuts
