Giosolar 200 Watt 12 Volt Solar Panel Kit Monocrystalline Panel with 20A LCD Charge Controller for RV Solar Charging Off-Grid System
Brief information
- Flexible: It can be curved to a maximum 30 degree which makes it ideal for tight spaces or crowded areas.

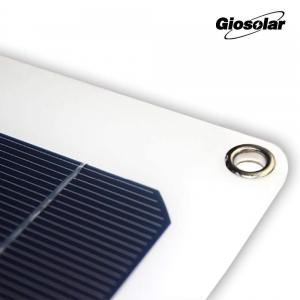

- Installation: Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations.
- LCD Controller: Battery Voltage: 12V/24V, auto & Charge Current: 20A & Discharge Current: 20A
- MC4 solar cable to connect your panels to charge controller. Branch Connectors allows multiple panels to be wired in parallel(MC4 Branch Connectors)

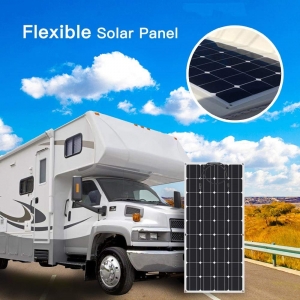

- Wide Application: Solar car, solar tour bus, golf car,solar bus, yacht and speedboat etc. Solar kit will be sent in separate safety packages due to size limited by shipping carrier.
Presence: In stock
Details

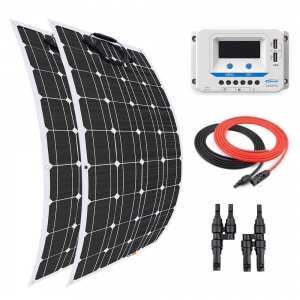

This Giosolar 200W solar kit includes:

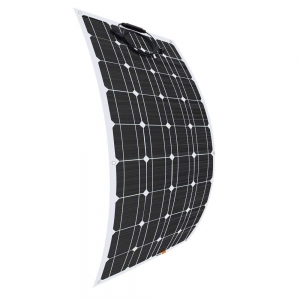

- 2 Pieces High efficiency 100W Flexible monocrystalline solar panel with 90cm of special solar cable and waterproof connectors

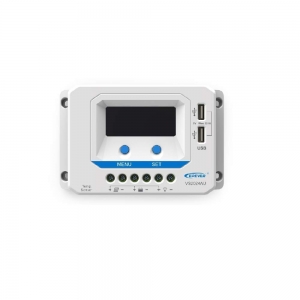

- PWM 20A 12V/24V LCD charge controller

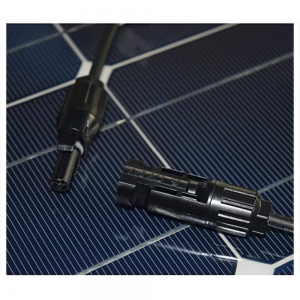

- Total 5M solar cable with MC4 connectors (red about 2.5m, black about 2.5m)
- 1 Pair MC4 Y branch connector
Solar Panel Specifications:
- Maximum Power: 100W
- Optimum Operating Voltage (Vmp): 18 V
- Open-Circuit Voltage (Voc): 21 V
- Optimum Operating Current (Imp): 5.5 A
- Short-Circuit Current (Isc): 6.25 A
- Dimensions: 1200*550*2.5mm / 47.24 X 21.64 X 0.1 In
- Weight: 4.4lbs (2.2KG)
- 90cm of special cable with MC4 connectors attached
Please contact Giosolar if have any questions.
