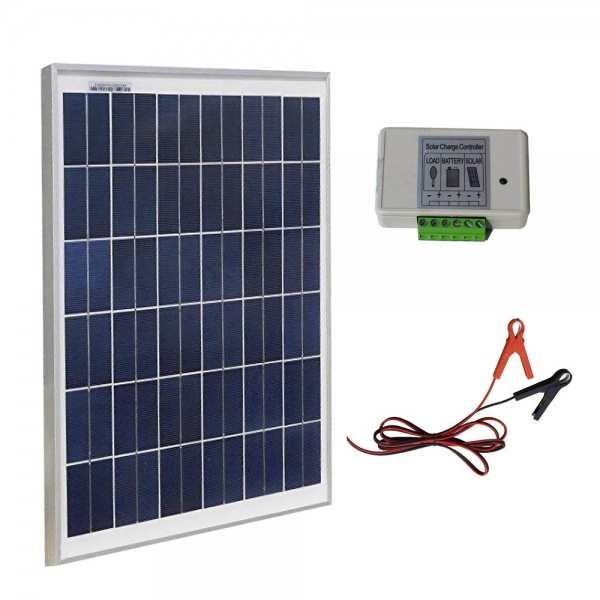

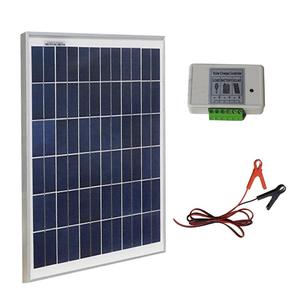

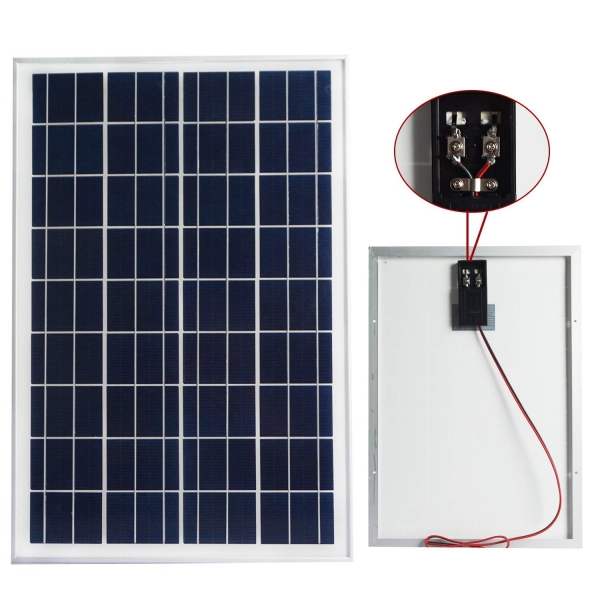

ECO-WORTHY 20W 12V IP65 Solar Panel Kit: 20W Off Grid Polycrystalline Solar Panel & Aluminum Battery Clips & 3A Charge Controller
Brief information
Presence: In stock
Details

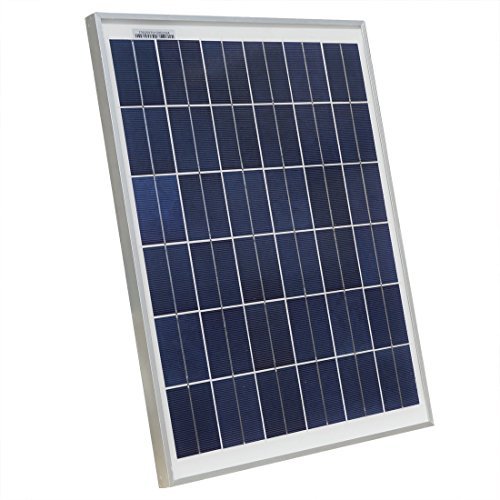

- Related Power:20W
- Voc:21.6V
- Vop:18V
- Short Curcuit Current (Isc):1.22A
- Working Current (lop):1.11A

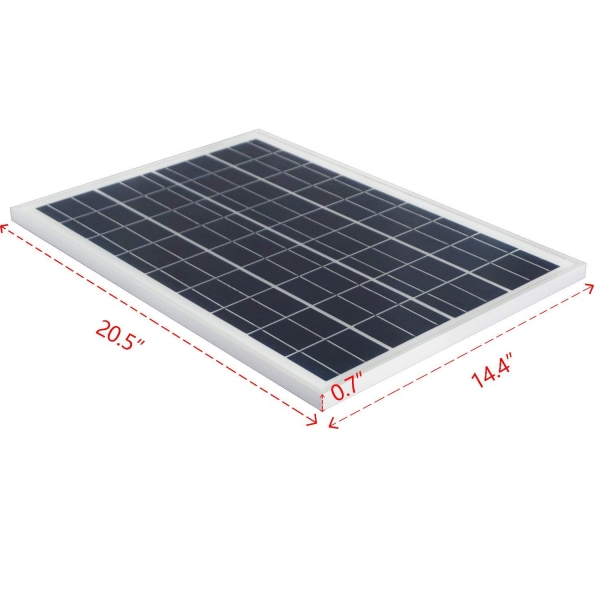

- Dimensions (L x W x H):20.5*14.4*0.7inch (520*365*18mm)
- 5-year/95% efficiency rate
- 10-year/90% efficiency rate
- 25-year/80% efficiency rate

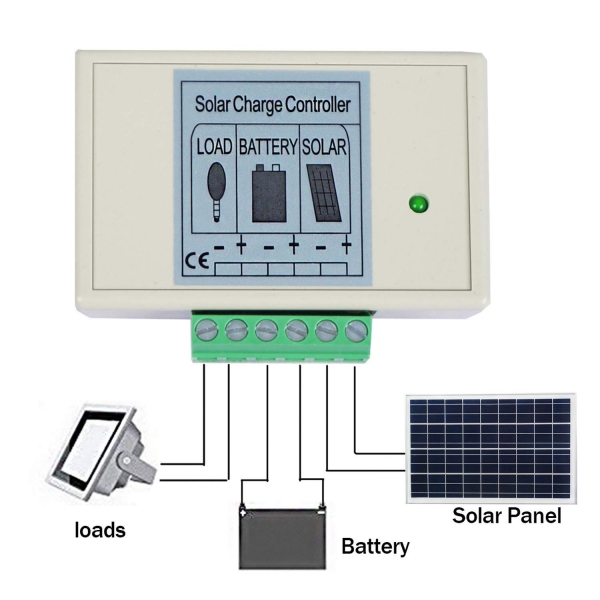

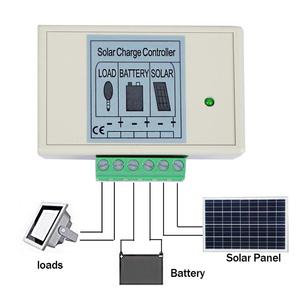

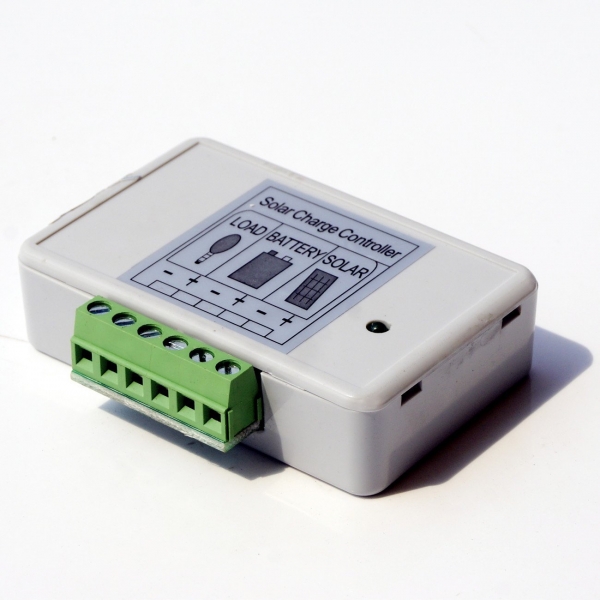

3A PWM Solar Sharge Controller
- Nominal output(automatic identification): 12V/24V
- Operating current: 3A
- Short-term load current (60 seconds): 6A
- MAX Solar panel: 40W/80W
- Over discharge protection: 10.8V/21.6V
- Over charge protection: 14.4V/28.8V
- Float charge: 13.8V/27.6V
- PWM charging: YES
- Self-Consumption: 1.5mA/3mA
- Waterproof Class: IP22
- Notice: the controller is not suitable for exposing at outdoor in a long time.
Complete Solar Kit with Reliable Quality

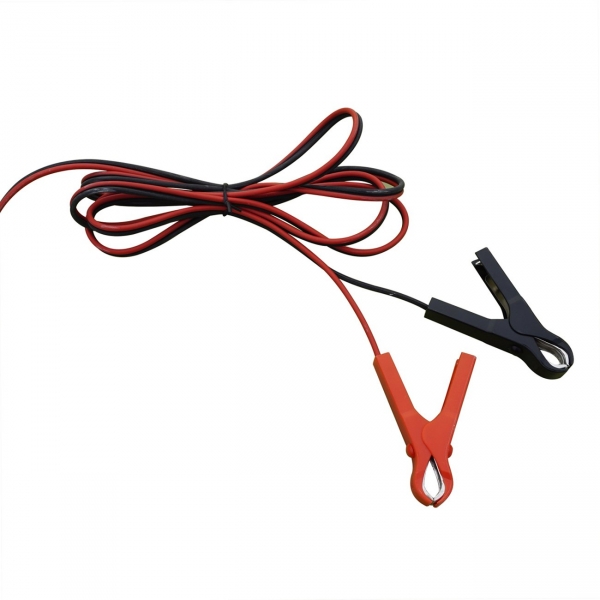

- Comes with 1 pair 30A Battery Clips with 6.5 feet Extension Solar Cable.
- Perfect for charging 12V battery and DC load.

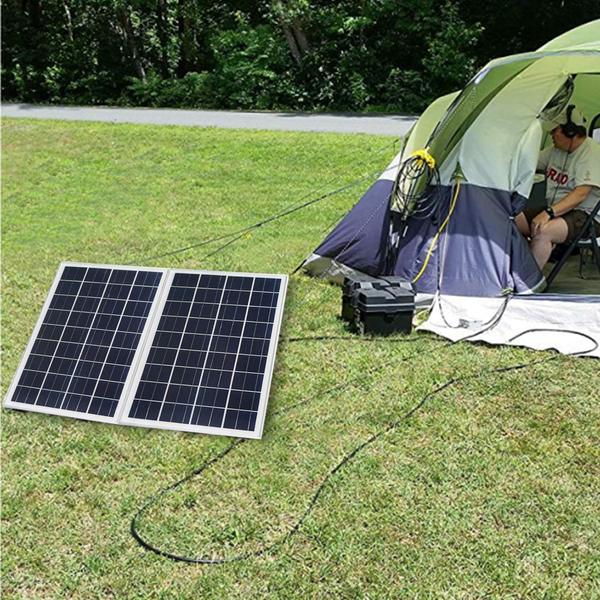

- Easy to carry for camping or other outdoor activities.
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).
Easy Installation
- Power-up one or two at a time.
- It's great for students and hobby on budget.
- Pls make sure your battery voltage is higher than 10.8 volts before connecting to the charge controller, and the safe charging voltage of battery is below 13.86 volts.
- Perfect for running your DC devices: fan, linear actuator for a portable chicken coop, LED light etc.
- If you want the solar kit to run AC load, pls hook up one off grid inverter.
