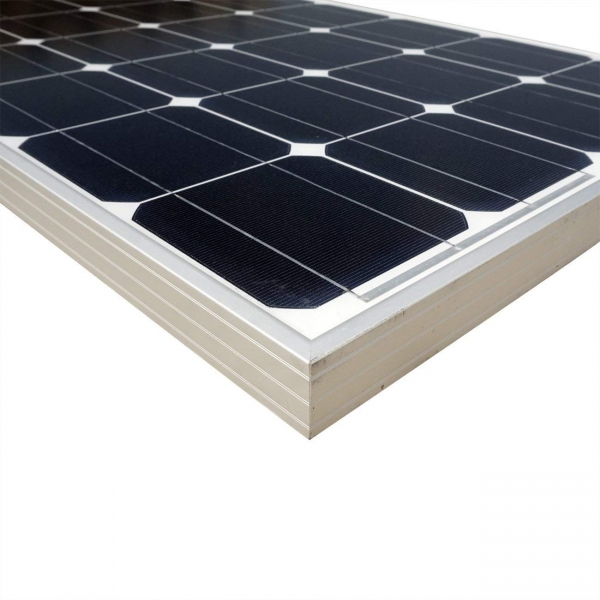

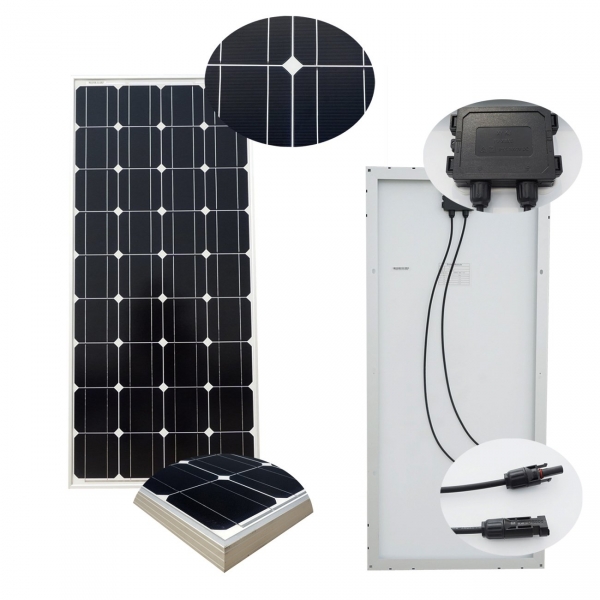

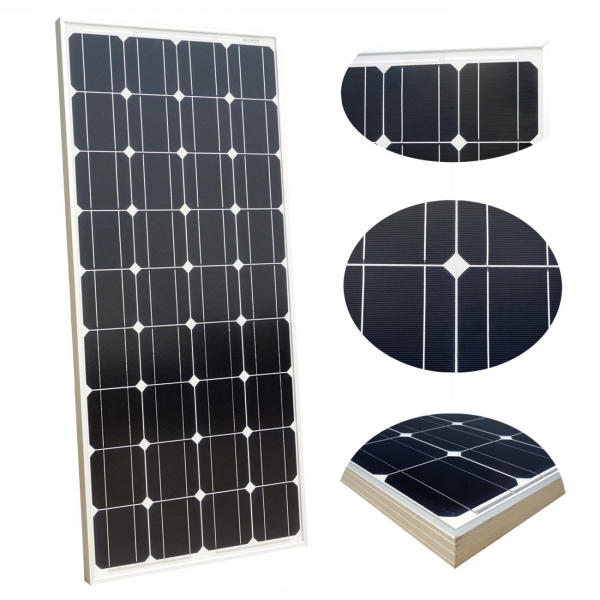

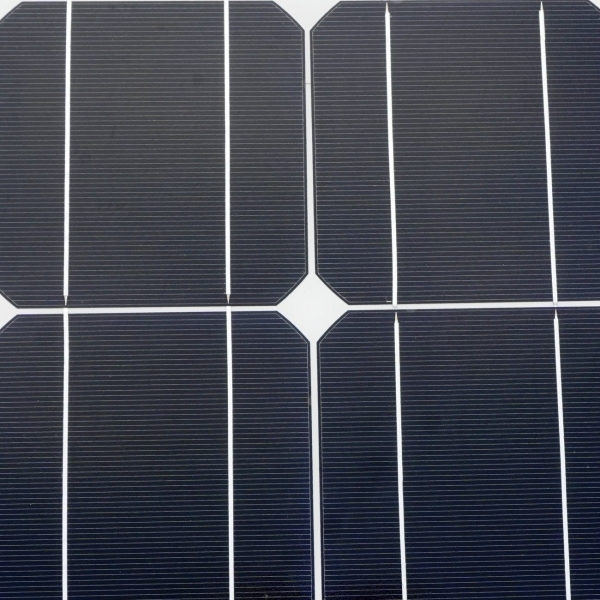

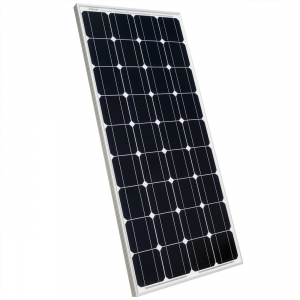

ECO-WORTHY 100W Solar Panel 12V Monocrystalline Photovoltaic PV Module
Brief information
Presence: In stock
Details
Specification
Related power: 100W
Voc: 21.6V
Vop: 17.3V
Short circuit current (Isc): 6.13A
Working current (Iop): 5.78A
Output Tolerance: ±3%
Temperate coefficient of Isc: (010+/- 0.01) %/℃
Temperate coefficient of Voc: - (0.38 +/-0.01) %/℃
Temperate coefficient of power Voc: -0.47%/℃
Temperature range: -40℃to +80℃
Frame: Heavy duty aluminum

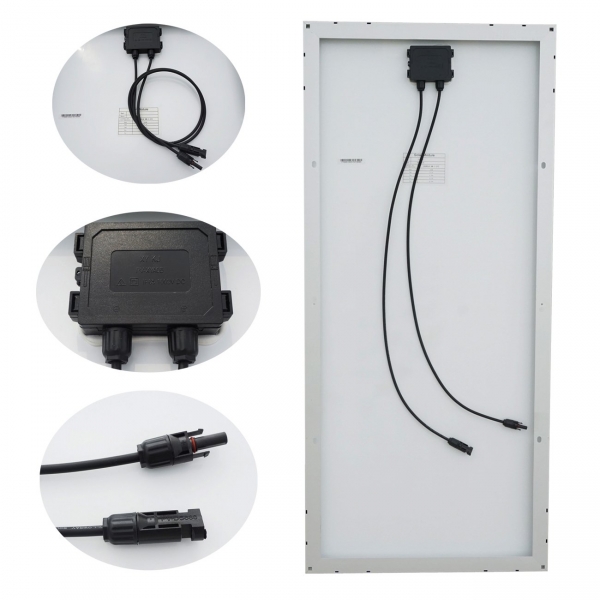

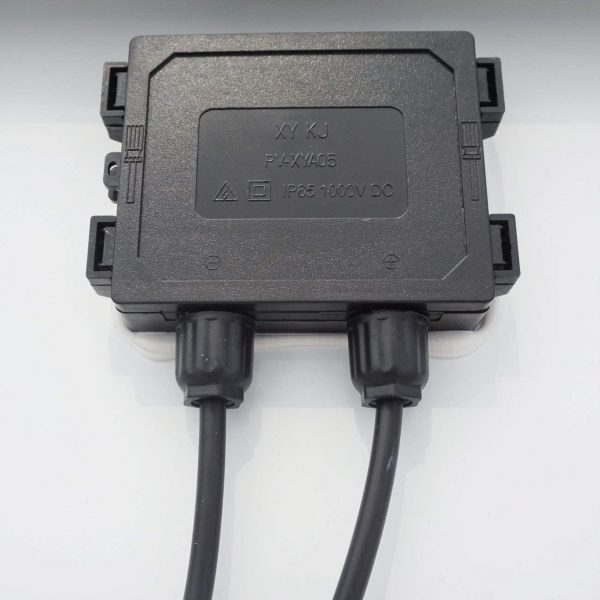

Kind of connection: waterproof junction box, can be customized
Guarantee of power: 90% within 10 years 80% within 25 years
Kind of glass and its thickness: Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage: 12V
Size: 47.6*21.3*1.2in (1210*541*30mm)
Weight:20.2lbs(9.13kg)
Package included:
1pc 100W mono solar panel with MC4 connectors.
