ACOPOWER 100 Watts Monocrystalline Panel Solar RV Kits with 20A MPPT LCD Charge Controller/Mounting Brackets/Solar Cables/Cable Entry housing

Big picture

ACOPOWER 100 Watts Monocrystalline Panel Solar RV Kits with 20A MPPT LCD Charge Controller/Mounting Brackets/Solar Cables/Cable Entry housing

Brief information

Presence: In stock

199 USDT

Details

Product Description

12V Solar System Designed for off-grid use with the ability to easily charge most 12V batteries:

Gel
Sealed
Flooded (Wet Cell)
Lithium Ion

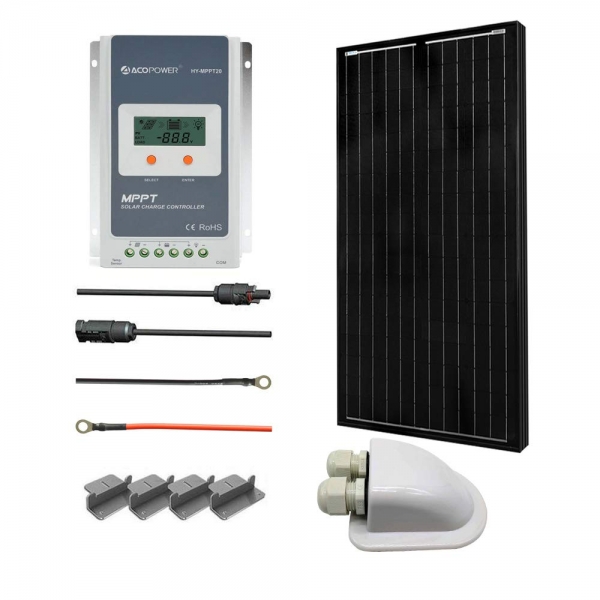

ACOPOWER 100W Solar Panel Kit | MPPT Charge Controller

This 100W Solar Kit is designed with off-grid in mind. Suitable to mount on RVs, green homes, cars, and boats.

Solar Module: 1PC 100W Polycrystalline

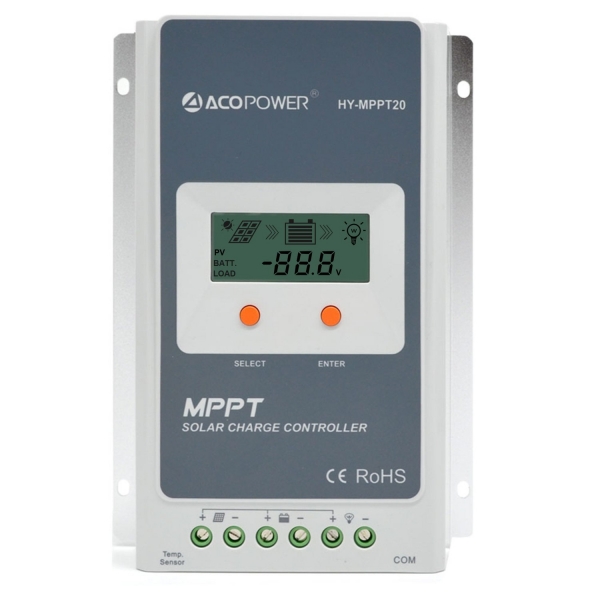

MPPT Charge Controller: 20A MPPT charge controller

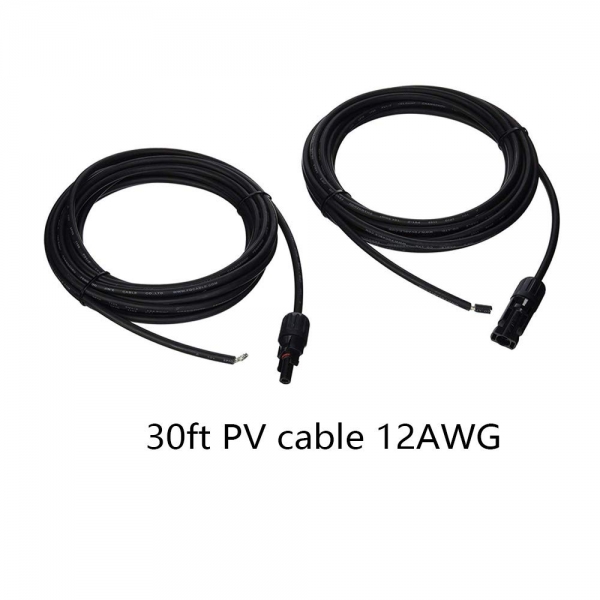

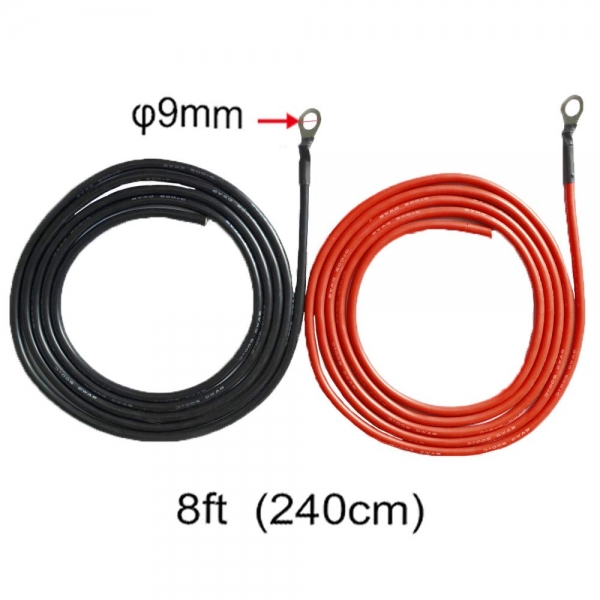

Cables: 1 pair 30ft 12AWG cable with MC4 connector to connect to the charge controller 1pair 8FT 8AWG Tray Cable to connect the charge controller to your battery;

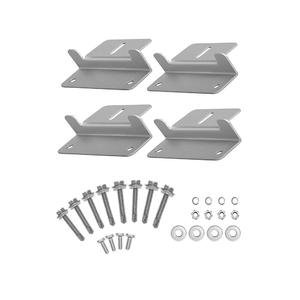

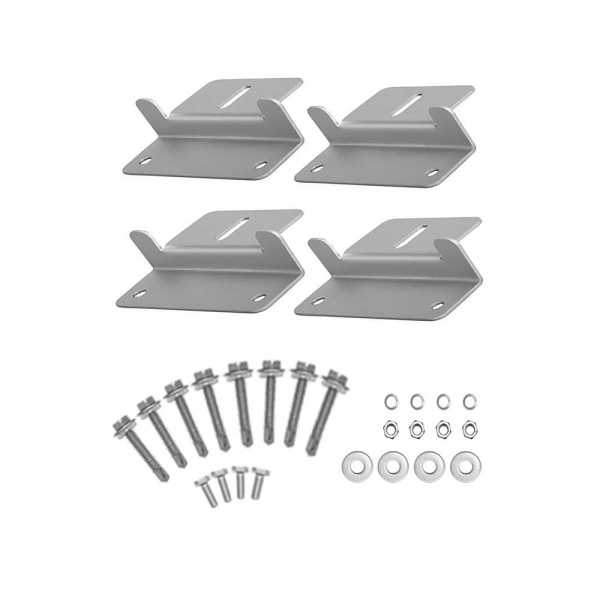

Mounts and cable Entry housing: a set of z-brackets and a waterproof cable Entry housing

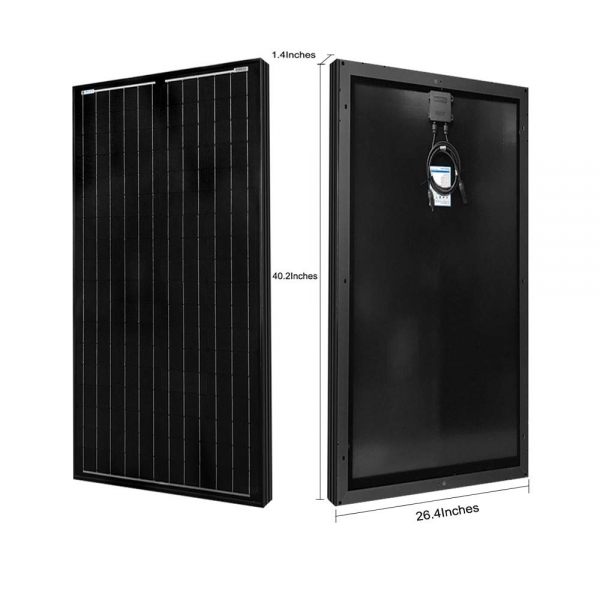

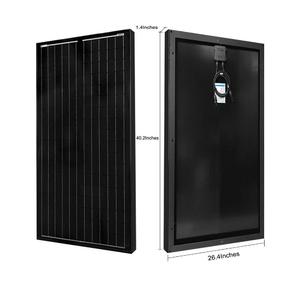

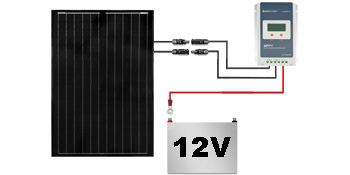

100W Mono Solar Panel Specification Peak Power (Pmax):100W Peak Circuit Voltage(Voc):22V Max Power Voltage(Vmp):17.48V Short Circuit Current(Isc):6.14A Max Power Current(Imp):5.71A Wind resistance:2400pa Weight:20.9 lb Dimension:40.226.41.4 Inch Application Class:Class A	20A MPPT Solar Panel 12 / 24VDC automatically identifying system voltage Rated charge current: 20A Max Input Power: 12V@260W \| 24V@520W Max.PV open circuit voltage:100VDC (92V at 25℃ temperature) Battery type selection: lead-acid (Gel, Sealed, Flooded) and Lithium Positive Grounding Design Installion Notes：First connect the battery；Then connect the load; Finally connect the solar panel.	Z Brackets 1 Set Mounting Z Brackets	Cables and Housing 30ft 12AWG PV Cable with female/male MC4 connector 8FT 8AWG Tray Cable A waterproof cable Entry housing


	100W KIT	200W KIT	300W KIT	400W KIT	500W KIT
100W Solar Panel	1PC	2PC	3PC	4PC	5PC
Charge Controller	20A MPPT	20A MPPT	30A MPPT	40A MPPT	40A MPPT
30FT PV Cable	✓	✓	✓	✓	✓
8FT 8AWG Tray Cable	✓	✓	✓	✓	✓
Cable Entry housing	✓	✓	✓	✓	✓
Z Brackets	1 Set	2 Set	3 Set	4 Set	5 Set
T/Y Connector	None	1 Pair	2 Pair	3 Pair	4 Pair
